Rear Sets - Kawasaki ZX-10R 2011-2015

$575.00

SATO RACING Rear Sets for 2011-15 Kawasaki Ninja ZX-10R (part# K-ZX1011RS) features a thoroughly track-engineered and competition-proven design, with components precision CNC-machined out of lightweight, high strength anodized billet aluminum. Modular adjustable design provides 18 unique peg positions that bring your feet Up / Back compared to stock, so you can find the ideal position for your riding style. These premium Rear Sets have a 'street'-friendly design: Fully compatible with the stock brake light switch and ABS. Choice of Black, Silver or vivid Gold anodized finish.

Details:

  • The Foot Pegs are fixed-type (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Pegs have End Caps made of high-density black Delrin .

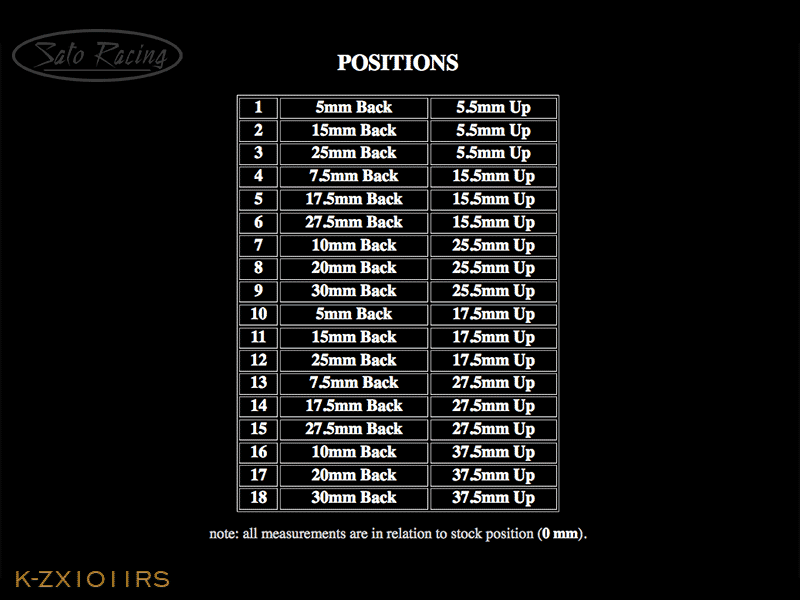

  • Adjustable Step Plate design lets you select from 18 unique positions. See Position Chart above for the adjustment range.

  • The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin, and are also adjustable.

  • The shifter and brake pedals utilize miniature double stainless bearings for smooth, precise actuation with a solid feel, and pivot on a separate axis from the foot pegs for optimal leverage.

  • Components are fastened together with stainless steel bolts. Use the stock bolts to attach the Base Plates to the frame.

  • Rear brake light compatible: includes hardware for attaching the OEM brake light pull switch. ABS-friendly design.

  • The shift lever and linkage hardware included connects to the OEM change arm, providing a dedicated stock shift pattern. For Reverse / ‘GP’-style shift pattern, add Reverse Shift Kit part# K-ZX1011RS-CHAM, shown in the last photo of the Gold set above.

  • Rear Sets kit comes partly pre-assembled, and includes some basic instructions, but does not detail how to remove the stock set. (Consult a shop manual). We recommend installation be performed by a certified mechanic.

  • A small tube of threadlocker is included with the kit. (Factory pre-tightened parts have already had threadlocker applied during assembly.)

    NOTE: The matching Gold-anodized Brake Reservoir Cap and Oil Filler Cap seen in the right side photos are sold separately.
