Rear Sets - KTM RC390 2022+

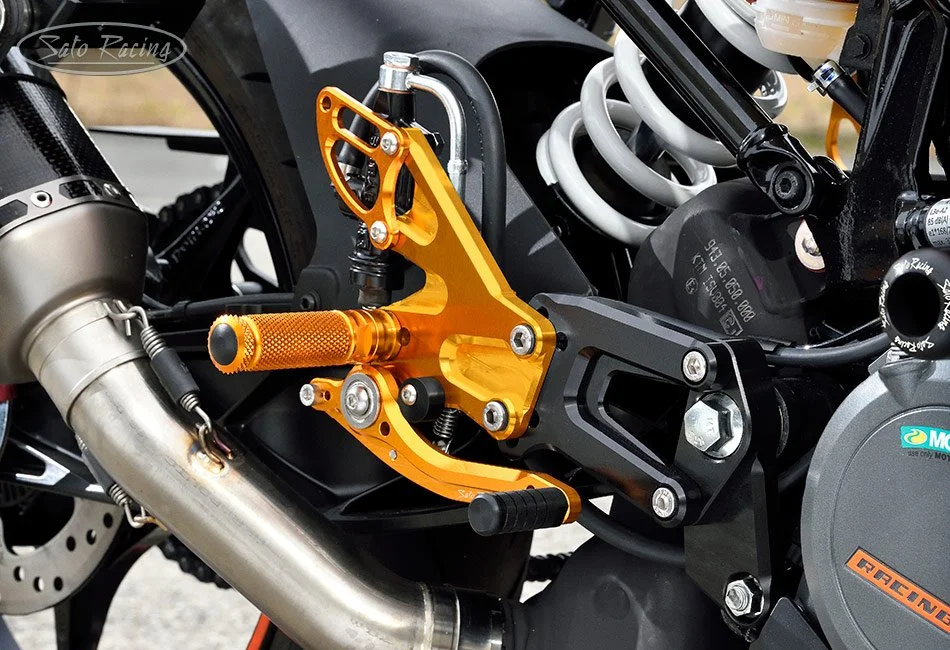

SATO RACING Rear Sets for 2022-23 KTM RC390 (part# KTM-RC39022RS / KTM-RC39022RSR) features a track-engineered and competition-ready design, with components precision machined out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Modular design lets you select from 8 unique foot peg positions in a wide adjustment range, bringing your feet higher up compared to stock, for a more aggressive riding position well-suited to the fast straights and steep lean angles encountered on the track. Our standard Rear Sets provide a stock shifting pattern. Reverse Shift Rear Sets are also available, providing a dedicated reverse (GP-style) shift pattern. Choice of all-Black anodized finish, or Gold finish over Black anodized Base Plates.
Details:
The Foot Pegs are fixed (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Pegs include End Caps made of high-density black Delrin.

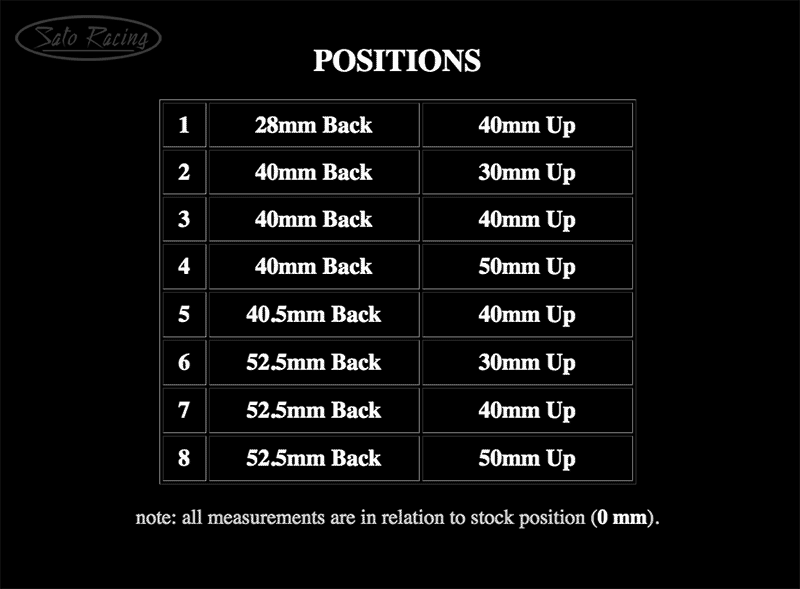

Adjustable design lets you select from 8 peg positions that bring your feet higher up and further back compared to the stock foot peg position. See Position Chart above for the adjustment range.
The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black DELRIN, and are also adjustable.
The shifter and brake pedals utilize miniature double stainless bearings for smooth, precise actuation with a solid feel, and pivot on a separate axis from the foot pegs for optimal leverage.
The Base Plates are made of high strength Black-anodized billet aluminum. They attach to the frame and swingarm pivot.
Compatible with the OEM rear brake light switch.

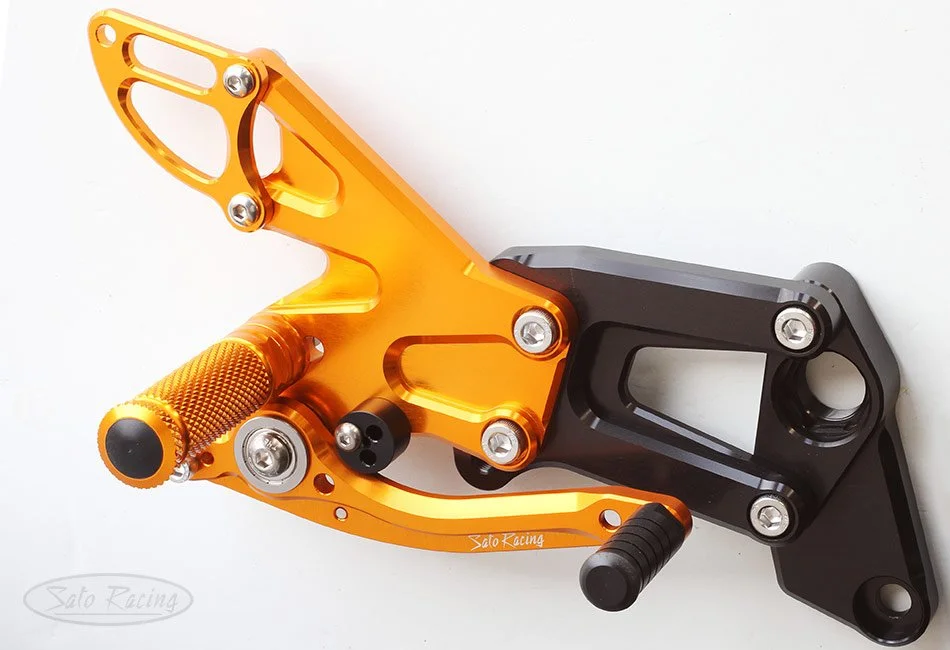

On the standard version, the shift rod attaches to the stock change arm, providing a dedicated stock shift pattern. The Reverse Shift version (part# KTM-RC39022RSR) includes a black anodized billet aluminum change arm and has a different shift lever design, providing a GP-style reverse shift pattern.
Rear Sets kit comes partly pre-assembled, and includes some basic instructions, but does not detail how to remove the stock foot controls. (Consult a shop manual). We recommend installation be performed by a certified mechanic.
A small tube of threadlocker is included with the kit. (Factory pre-tightened parts have already had threadlocker applied during assembly.

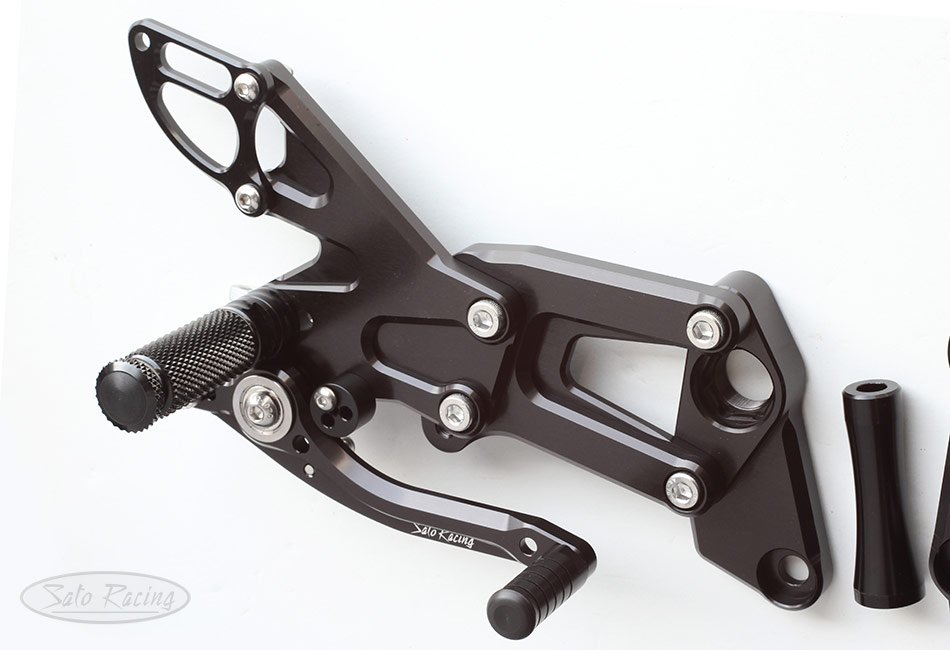

NOTE: The sample photo of the Black rear sets above shows the model for the first generation RC390. The 2022+ model looks similar but has a slightly different Base Plate design.
