Rear Sets - Triumph Speed Triple RR 2022+

$615.00

SATO RACING Rear Sets for 2022-23 Triumph Speed Triple 1200 RR (part# T-STRR22RS) features an extensively track-tested design, with components precision CNC-machined out of high strength anodized billet aluminum. Adjustable Step Plates provide 5 foot peg positions, bringing your feet further back and significantly higher up compared to stock. The externally mounted shift linkage integrates with the stock quickshifter and can be set up for stock shift pattern to GP-style reverse shift pattern. Choice of all-Black anodized finish, or Gold finish with Black-anodized shift assembly.

Details:

  • The Foot Pegs are fixed type (non-folding), and feature a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Foot Pegs have End Caps made of abrasion-resistant black Delrin.

  • The Pedal Tips (toe pegs) are also made of black Delrin. The Shift and Brake Pedals each have multiple position holes for attaching the Pedal Tips.

  • The Shift Lever and Brake Pedal use double miniature stainless bearings for smooth, precise lever actuation. The Shift Lever is double-ended so it can be set up for either stock or reverse (GP style) shift pattern. Includes a Shift Rod and hardware optimized for use with the stock Triumph quick-shifter.

  • Brake Pedal is fully compatible with the stock brake light switch and ABS.

  • Components are precision-machined out of high strength billet aluminum and then coated with a protective anodized finish. Bolts are stainless steel.

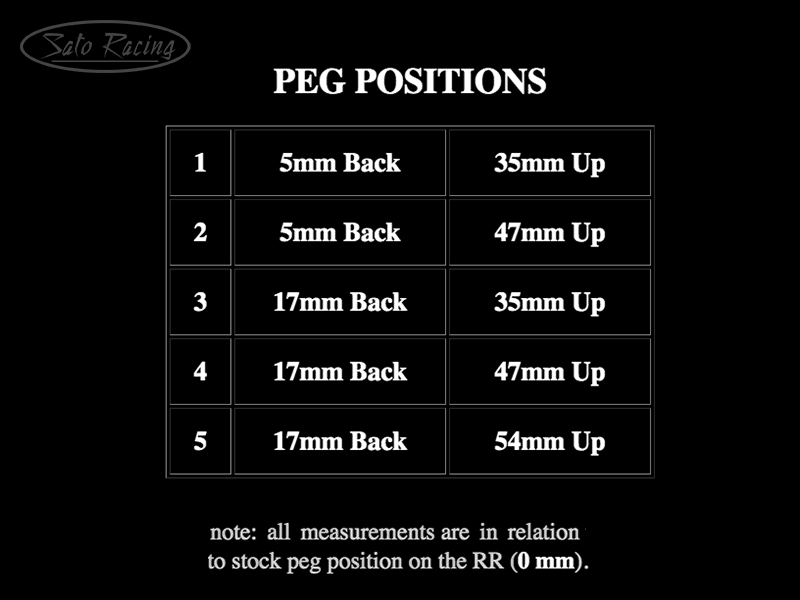

  • Modular design provides 5 adjustable positions for attaching the Step Plate to the Base Plate, bringing your feet further back and much higher up compared to the stock foot peg position, for a more aggressive, performance-oriented riding position. (See Position Chart above for adjustment range).

  • Kit includes a small tube of threadlocker. (Factory pre-tightened parts have already had threadlocker applied during assembly).

  • Includes some basic installation instructions, but does not detail how to remove the stock controls (consult a shop manual). We highly recommend installation be performed by a certified mechanic.
